Description
Dual-band 2M/440 handheld radio. KG-UV3D includes the 1700 mAh Li-ion battery pack, a redesigned heavy duty textured case and the latest firmware with new features. Wouxun's new inexpensive, compact, full featured dual band handheld amateur radio.

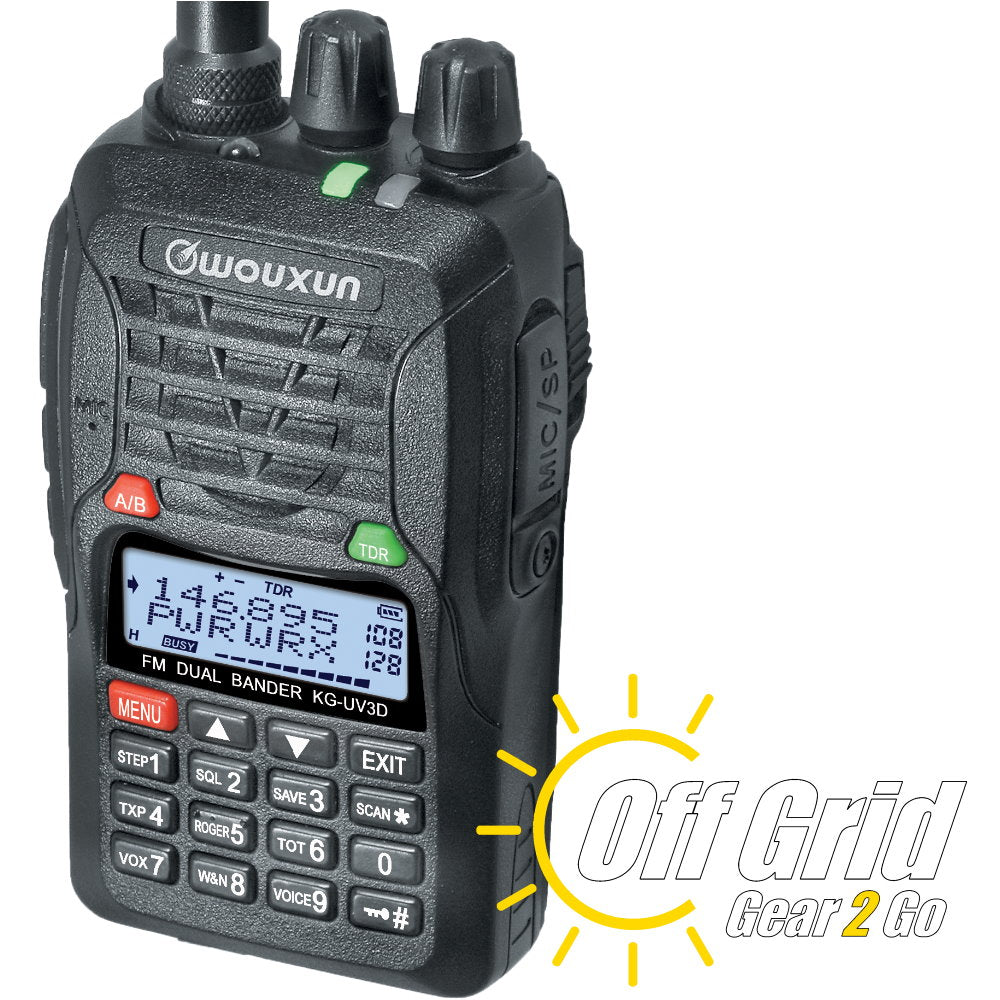

The KG-UV3D is a compact, high-performance dual band handheld amateur radio transceiver providing up to 5 Watts of RF power on VHF and 4 Watts on UHF, along with high audio output (500 mW).
The KG-UV3D features a long operating time (about 15 hours), thanks to the standard 1700 mAh high capacity Li-ion battery pack.
Software programmable via the optional low cost USB programming cable, or manually programmable via keypad.
KG-UV3D Model Features
- Customizable 6-character power on display message: Identify your radio by callsign or name on power up.
- Last radio state will resume on power cycle: Continue to work in single band mode or B-band after powering up.
- LED flashlight now works independently of the radio status: Utilize the flashlight feature while receiving or transmitting.
FCC Approval
The KG-UV3D is certified for Amateur Radio use (144-148 mHz and 420-450 mHz) and CE rated. FCC ID: WVTWOUXUN04.
Transmission Limitations
This amateur radio is limited to transmit within the U.S. Amateur Radio frequency ranges only (unless the customer has requested the optional MARS/CAP modification).
Radio Warranty Policy
- 12 month limited warranty on the radio against defects in materials and workmanship
- 6 month limited warranty on the included radio battery and battery charger against defects in materials and workmanship

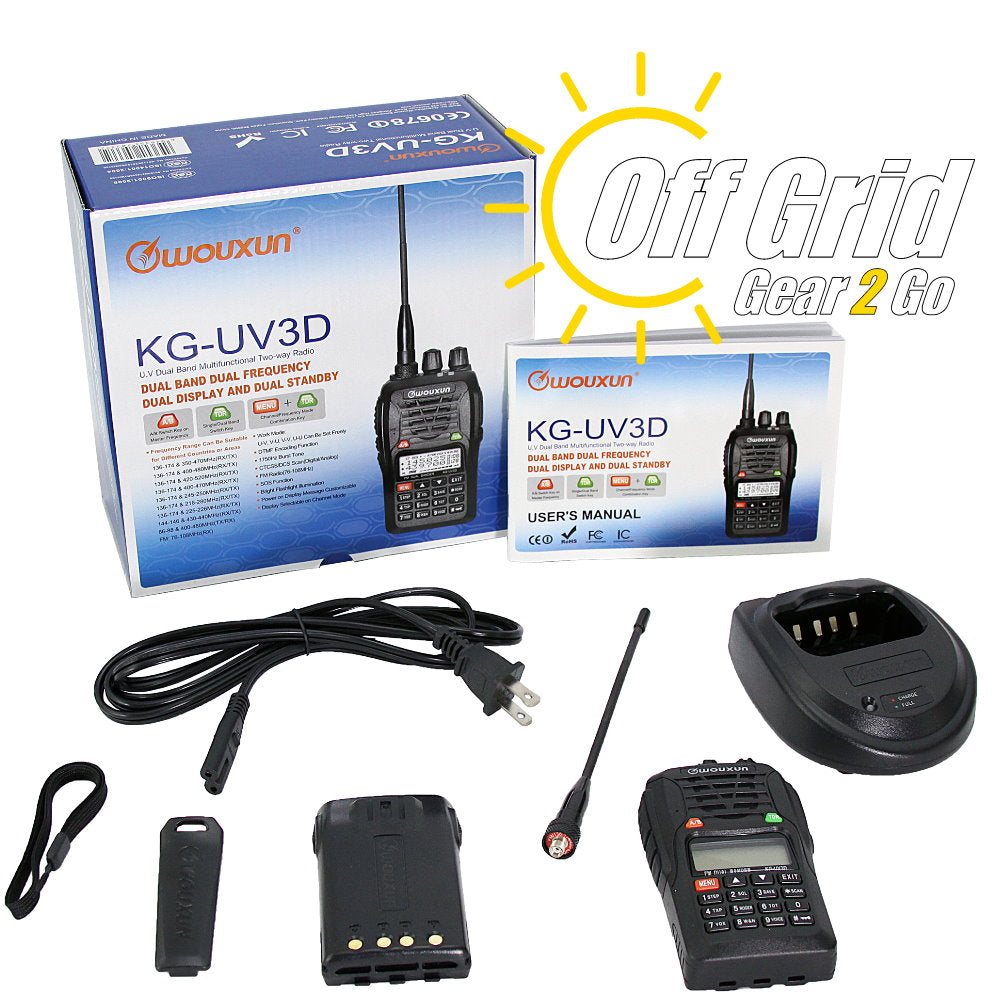

Standard Accessories Included with Every Radio
- Dual band radio
- Dual band antenna
- 1700 mAh high capacity li-ion battery pack (about 15 hours operating time)
- Intelligent desktop 3-4 hour rapid charger
- Desktop charger AC power cord
- Belt clip
- Wrist strap
- English user manual
- Programming software (Free Download)
Features
|
|
Specifications | KG-UV3D-2/420-520 | |
---|---|---|
Frequency Range (RX) | VHF: 136-174 MHz UHF: 420-520 MHz FM: 76-108 MHz |
|
Frequency Range (TX) | VHF: 144-148 MHz UHF: 420-450 MHz |
|
Memory Channels | 128 channels (shared) | |
Operating Voltage | 7.4 VDC | |
Operating Temperature | -22°F to 140°F (-30°C to +60°C) | |
Dimensions (W x H x D) | 2.3 x 4.1 x 1.6 inches (58 x 105 x 40mm) (with 1700 mAh battery pack, without antenna) |
RF Carrier Power | VHF: 5W high/1W low, UHF: 4W high/1W low | |
Audio Output Power | 500mW maximum | |
Waterproof Rating | Meets IP55 waterproof rating |
* Optional custom frequency programming services are available starting at $20 per handheld radio. MARS/CAP extended frequency modification service NOT included in the normal radio price.
