Description
Features:
- 2/5 DTMF tones
- One Key Frequency Copy
- VOX (Voice Operated Transmit)
- Channel Memory or Frequency Scan
- White Backlit Dot-Matrix LCD Display
- Dual Band, Dual Display, Dual Standby
- 200 Programmable Channel Memories
- 24 FM Analog Commercial Radio Memories
- 1750Hz tone (primarily for European repeater use)
- Kenwood 2-Pin Style Microphone/Programming Jack
- Multiple Power Levels (2W Low / 5W Medium / 10W High)
- 2800mAh Li-Ion Extended Rechargeable Battery with USB-C Charging
- Audio Scrambler (not legal for use on U.S. Amateur Radio Frequencies)
* If the customer requests it, we will include the MARS/CAP modification for this radio at no extra charge before shipping, allowing it to be used on the Military Auxiliary Radio System (MARS) or Civil Air Patrol (CAP) frequencies, which are located outside of the normal U.S. amateur radio bands. This modification unlock does not include any MARS/CAP programming of the radio.
Optional custom programming services are available starting at $20 per handheld radio (using one of our standard frequency templates) - custom additional channels added to any standard programming template programmed for only $1.00 per additional channel.
Specifications:
General |
|
Channel |
200 Programmable Memories |
Operating Voltage |
7.4V DC |
Operating Temperature |
14°F ~122°F |
Weight |
0.65 lb (Battery and Antenna Included) |
Radio Dimensions |
4.96" H x 2.44" W x 1.69" D |
Transmitter |
|
Frequency |
144-148/420-450MHz (Transmit) 136-174/400-480MHz (Receive) |
Power |
10W (VHF)/9W (UHF) |
Maximum Power |
10W |
Spurious Power Level |
≤-15dB |
Modulation Noise |
<-40dB |
Modulation Distortion |
<5% |
Frequency Stability |
5ppm |
Max Frequency Deviation |
<±5KHz |
Current |
≤1600mA |
Audio Response (300-3400Hz) |
+6.5~-14dB |
Adjacent Channel Power |
≥65dB |
Receiver |
|
Sensitivity |
≤0.2uV |
Occupied Bandwidth |
≤16KHz |
Selectivity |
≥65dB |
Intermediation |
≥55dB |
Audio Power |
>500mW |
Audio distortion |
≤10% |
Frequency Stability |
5 ppm |
Current |
Standby: 60mA, |
Audio Response (300-3400Hz) |
+7~-12.5dB |

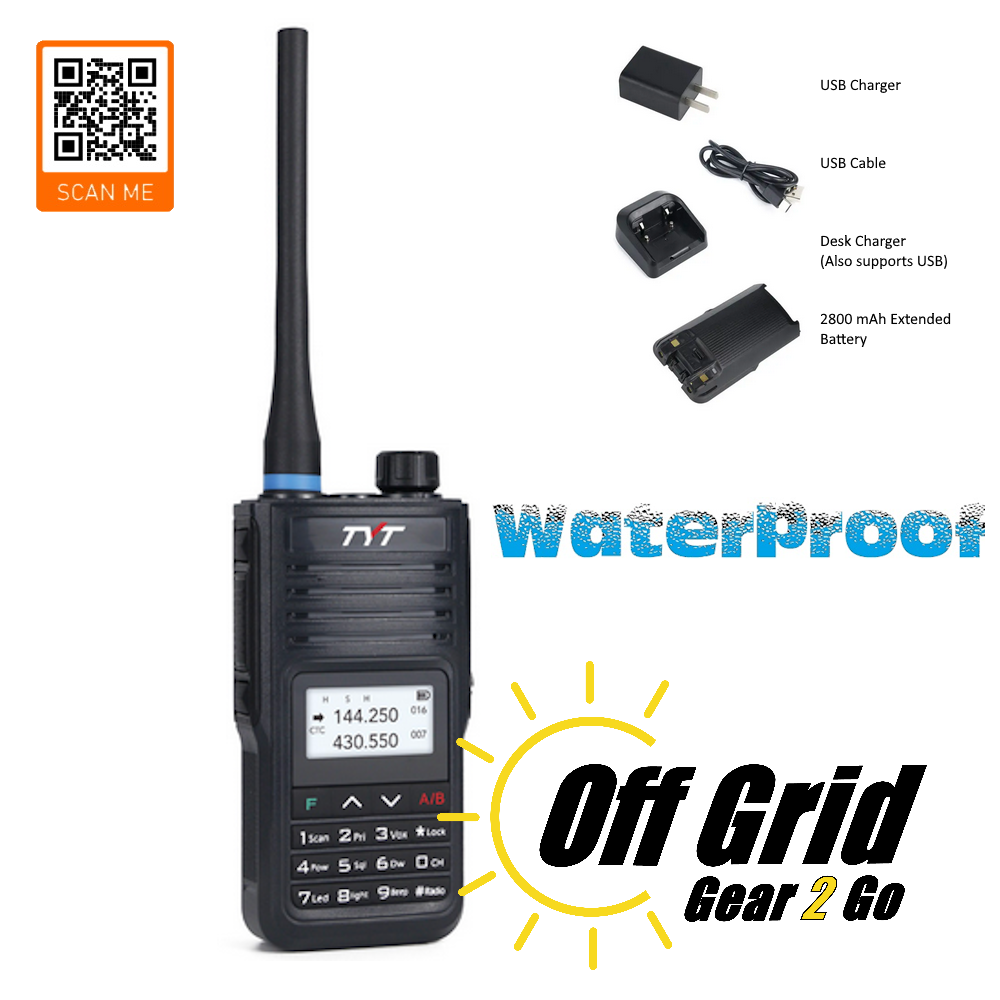

Radio Box Contents:
1* AC Adapter
1* 110v Desktop Charger
1* 58 Page User’s Manual

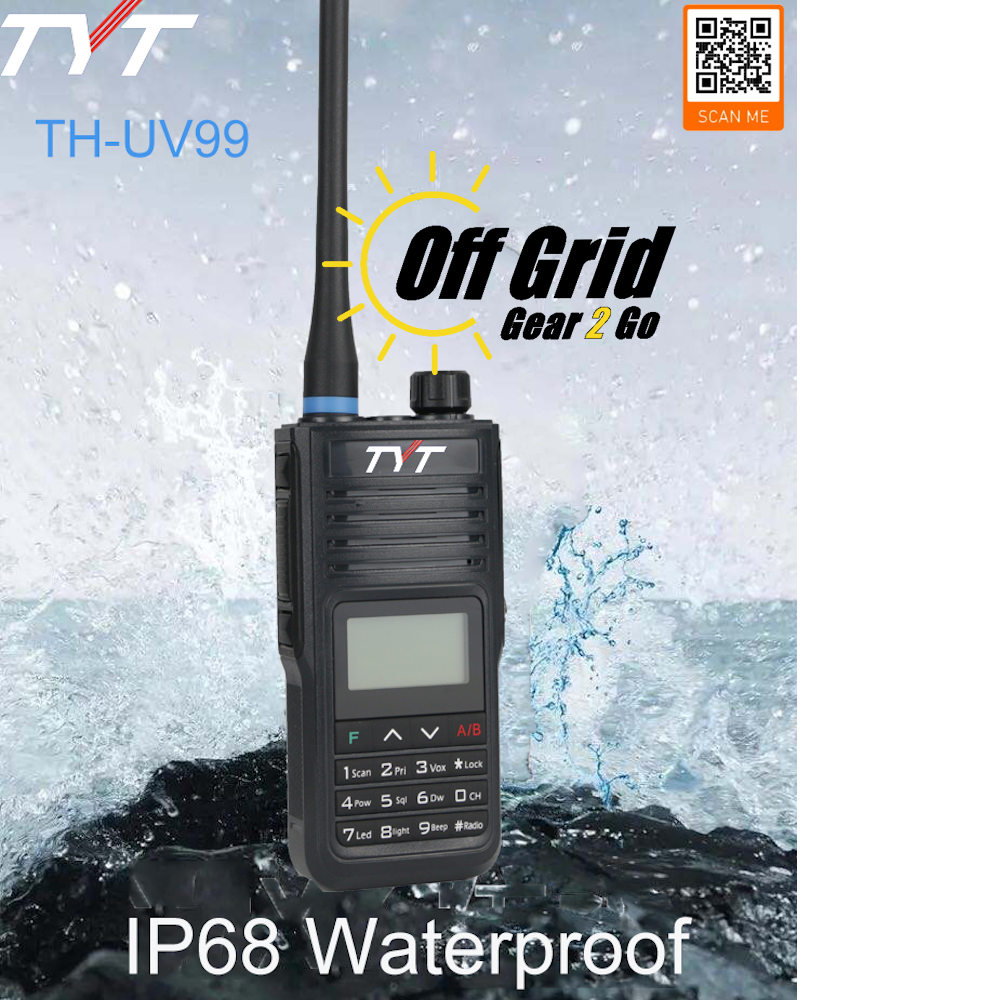

1* TYT TH-UV99 10W Radio
1* SMA-Male High Gain Antenna
1* 2800mAh Li-ion Battery Pack w/Belt Clip
