Description
VHF/UHF Dual-band Digital/Analog Part 90 DMR commercial transceiver with 1.77 inch color TFT display Bluetooth and GPS.
New AT-D878UVII PLUS model with green colored top button, includes DMR Roaming, larger memory for future enhancements and storage up to 500,000 contacts. Ideal for Fire, Search & Rescue, EMS, Police, Sheriff, Forestry and Security operations.
Frequency coverage 140-174 / 400-480 MHz. Includes USB Programming cable and Bluetooth PTT button.
EXCITING NEW "D878UVII PLUS" FEATURES INCLUDE:
- Increased "Digital Contacts" capacity from 200,000 to 500,000
- New APRS RX feature with arrow pointing direction
- Increased memory for future enhancements
- New top mounted "Green" colored button
Main Features Include:
RoamingBuilt-in DMR Repeater Roaming feature |
APRS / GPS CapableDMR-APRS and Analog APRS RX/TX Capable (GPS) |
VHF/UHF Dual BandMonitor two bands at the same time (V+V, U+U & V+U). |
Digital DMR and AnalogFeatures both DMR digital and analog modes on any channel. |
High Power Output6.0W, 4.0W, 2.5W, 1.0W selectable TX power output. |
BluetoothBluetooth connectivity to some devices (see below) |
Programming CableIncludes USB Programming Cable, free software available for download. |

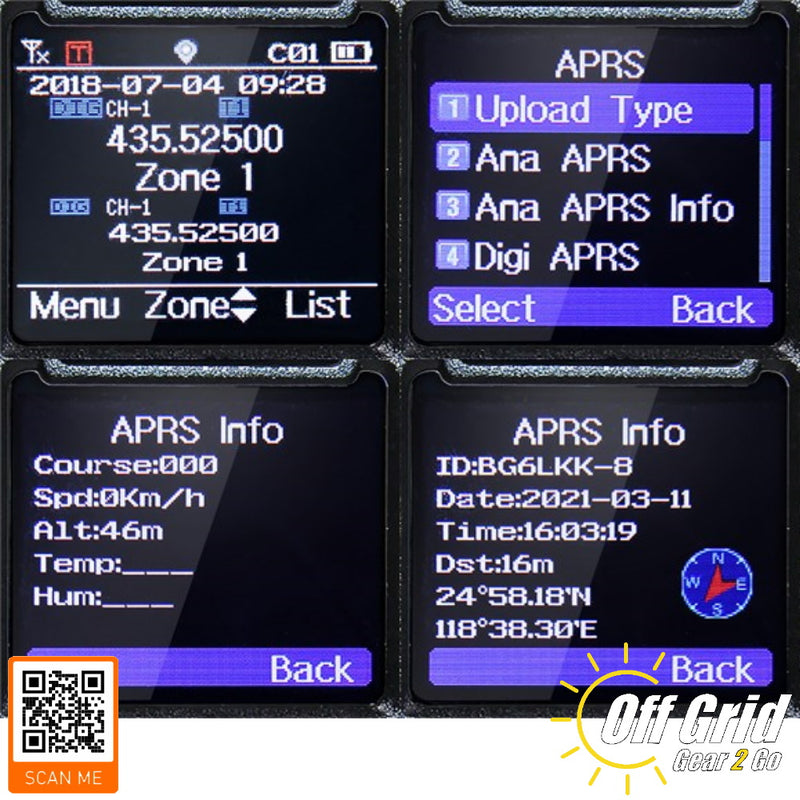

Color TFT Display1.77 inch color TFT screen for Day or Night operation. User changeable display and font colors. |
Tech Specs
Bluetooth | New Bluetooth feature compatible with many newer car entertainment systems and Bluetooth devices. It cannot be guaranteed that it will work with all Bluetooth devices currently available. Anytone will continue improving the Bluetooth function to allow more device and car models in the future. No time-frame for these future Bluetooth updates is currently available. |
Roaming | New Built-in Roaming Feature |
APRS (GPS) | DMR-APRS and Analog APRS RX/TX Capable (GPS) |
Processor | Faster Processor over the D878UV and D868UV models |
Additional Memory | Larger Memory for Future Enhancements |
TFT Display | Background Display and Font Colors are User changeable |
Digital Monitor | Monitor One or Two Timeslots |
Zone Select | Select-able Zones from Keypad |
Auto RX Mode | Receiver Auto Selects to incoming Digital or Analog Signal |
GPS | Built-in GPS feature |
Memory Channels | 4,000 channels |
DMR Talk Groups | 10,000 |
Digital Contacts | 500,000 (complete worldwide database from DMR-MARC) |
Power Levels | 4 programmable power levels: 6/4/2.5/1 Watt Transmit Power Levels. |
Zones | 250 zones, up to 250 channels per zone. |
Display | 1.77 inch color TFT Screen with select-able dual channel or single channel display. |
Battery | Operate 35+ hours between charges with the supplied 3100 mAh lithium ion battery in the power saver mode. |
Bandwidth | 12.5 / 25.0 kHz Analog, and 12.5 kHz DMR |
Import/Export | Enhanced CPS allows direct input and export of channels, digital IDs and talkgroups. |
Industries | Ideal for fire, search & rescue, EMS, police, sheriff, forestry, security patrols, business communications, schools, universities, and other organizations that have FCC licensed frequencies. |
DMR Compatibility | Supports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology. |
Amateur Radio | Also operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database. |
Programmable |
FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable. |
Speaker Connection | 2-pin style Kenwood type earphone and speaker mic connection for a variety of accessories. |
Quiet Tones | CTCSS/DCS tone squelch with split tone and custom tone capability. |
Frequency Range | 136-174 / 400-480 MHz RX/TX |
Package Includes | Dual-band VHF/UHF Radio, large 3100 mAh extended life lithium ion battery, desk charger w/ AC adapter, Dual-band antenna, belt clip, Bluetooth PTT button and charging cable, free USB Programming cable and downloadable software, user manual. |
Certifications | FCC Part 90 Certified, FCC ID: T4KD878UV |
